Lincoln Electric Velion™ Level 3 DC Fast Charger

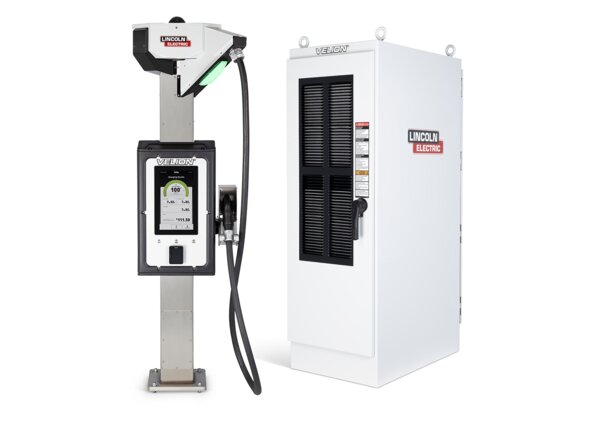

The Velion™ Electric Vehicle Charger Single Cable One-Pak comes with the 150 kW DC fast charger power tower and single cable pedestal compatible with CCS1 electric vehicles. Designed with a focus on modularity, the Velion DCFC chargers are a distributed system with a separate power unit and charging pedestal ideal for public or fleet use. The Velion Power Tower is capable of being located up to 200 ft away from the Velion Single Cable Pedestal allowing for adaptable configurations and flexibility for future expansions.
– Level 3 DC Fast Charger guaranteed to deliver consistent and reliable 150kW of power with a 300A continuous operation.
– Output voltage ranging from 200-1000 V DC that is capable of charging every EV battery.
– Modular design accommodates flexible layout configurations and ensures quick repair and service.
– NEMA 3R Enclosure (IP 54 rated) constructed with painted mild steel exterior and potted PC boards that is designed to operate in temperatures ranging from -30 to 50°C (-22 to 122°F).
– Durable 12 ft. cable sized to simplify cable management and prevent day to day wear.
– 15 inch LCD high-contrast touchscreen and three tactile navigation buttons ensure a seamless, user-friendly experience.
– Integrated payment terminal that is RFID, credit card reader and APP compatible. User interface is adjustable at installation to maintain ADA compliance.
– Overhead status light to signal whether the terminal is available (green), in use (blue) or out of service (red).
– Proximity sensor to notify operator that the port has been returned to the pedestal.
